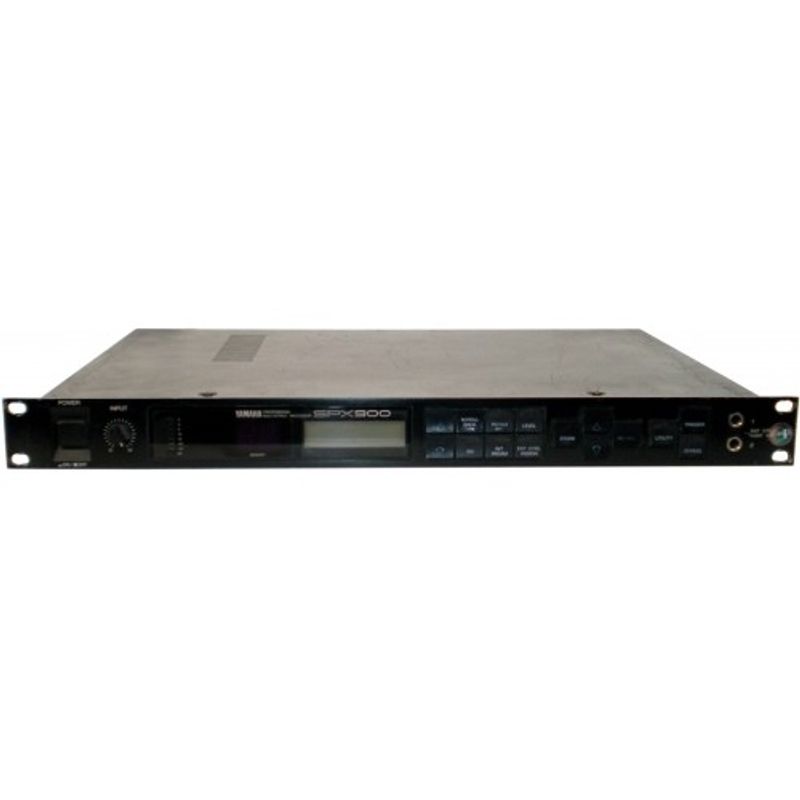

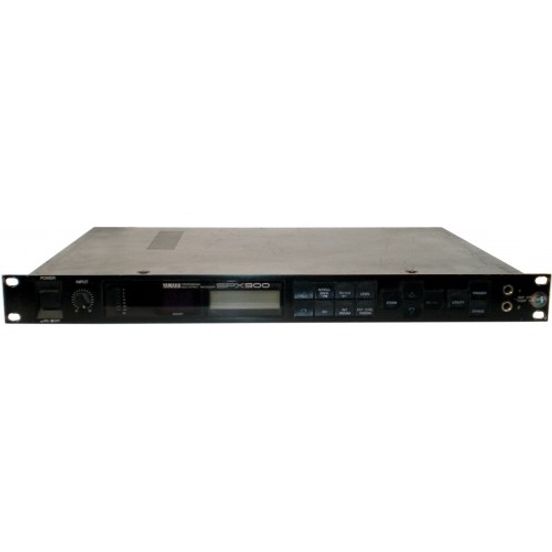

YAMAHA SPX900

Description

Offering 50 preset effect programs, the SPX900 also provides simultaneous processing of up to 5 effects at one time. With a sampling frequency of 44.1 kHz, it delivers a full frequency response from 20 Hz to 20 kHz. Exceptionally clean, professional quality sound makes the SPX900 the most appropriate choice for sophisticated sound and recording systems.

Specification:-

  • Electrical Characteristics Frequency Response: 20 Hz ~ 20 kHz; Dynamic Range: 90 dB (Typical); Distortion: 0.03% (@1 kHz)
  • Input Number of Channels: Imbalanced x 1 (Phone Jack); Nominal Level: +4/-20 dBm Switchable; Impedance: 50 ohms; Level Control: Rotary Continuous
  • A/D Conversion Number of Channels: 1 (AD Converter x 1); Sampling Frequency: 44.1 kHz (except D-IN); Quantization: 16 bits
  • D/A Conversion Number of Channels: 2; Sampling Frequency: 44.1 kHz (Except D-IN); Quantization: 16 bits
  • Output Number of Channels: Unbalanced x 2 (Phone Jack); Nominal Level: +4/ -20 dBm Switchable; Impedance: 220 ohms
  • Memory Presets (ROM): 1 ~ 50; User Memory (RAM): 51 ~ 99
  • MIDI Control Program Change (Memory Select), Note On (MIDI Base Key Select, Trigger), Control Change, Bulk dump & Load (Parameter Dump)
  • Front Panel Controls Input Level
  • Keys PARAM, INC/DEC, PARAMETER, SCROLL BACK, LEVEL EQ, INT. PARAM, EXT CTRL ASSIGN, STORE, MEMORY INC/DEC, RECALL, UTILITY, TRIGGER, BYPASS
  • Display 16 Characters x 2 Line LCD; 2 Segment LED (Mem#); 7 Segment Led (Level Meter)
  • Switch Power (On/Off)
  • Rear Panel Connectors: Input (Phone Jack x 1), Output (Phone Jack x 2), MIDI In, Thru/Out (Din 5P x 2), Trigger (Phone Jack), Bypass (Phone Jack); Switchs: Input Level SW, Output Level SW, MIDI Thru/Out SW
  • Power Requirements/ Consumption U.S. & Canada Models: 110V - 120V, 60 Hz/20W, General Model: 220V - 240V, 50/60 Hz/20W
  • Dimensions (W x D x H) 480 (W) x 45.2 (D) x 319mm (H) (18 7/8 x 1 3/4 x 12 1/2 inches)
  • Weight 4.4 kg (9 lbs, 11 oz)
