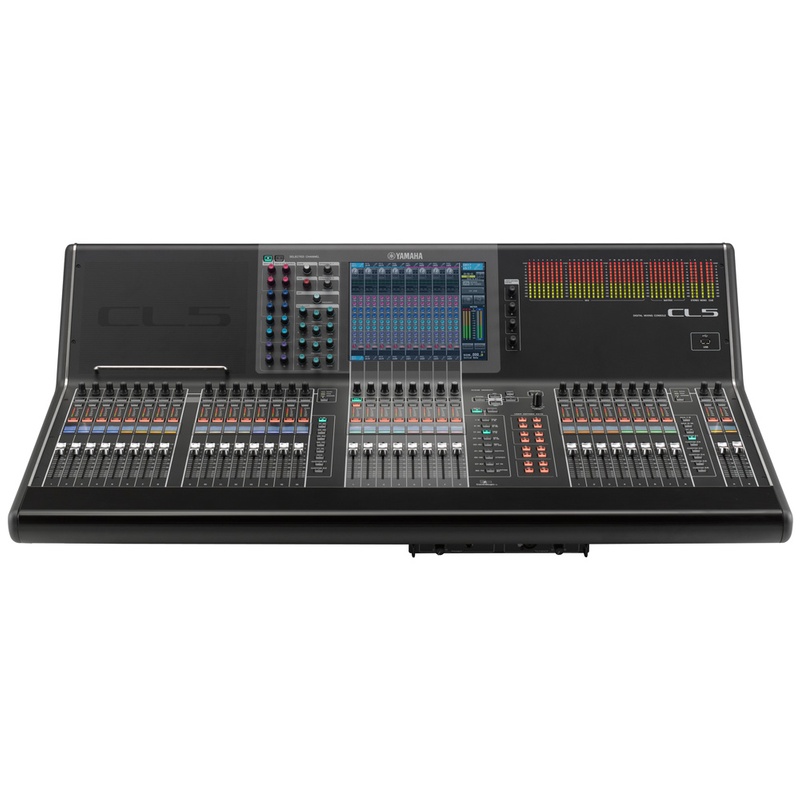

Every engineer, artist, and audience agrees that sound quality is the bottom line. That’s a given. Through thorough analysis, review, and refinement of every detail of the circuitry and technology used, Yamaha CL series consoles deliver naturally superior sound plus a comprehensive range of “coloring” options that give the sonic craftsmen who will use them extraordinary creative freedom. The signal processors provided are plentiful and of the highest quality, including extraordinary Portico 5033/5043 EQ and compressor devices that bring Yamaha VCM technology together with the legendary talents of Rupert Neve. The platform is pure and natural, so the engineer can create and deliver the ideal sound.


  • Mixing Capacity Input Mixing Channels 72 mono + 8 stereo
  • Mix Buses 24
  • Matrix Buses 8 (Input to Matrix supported)
  • Stereo Bus 1
  • Mono 1
  • Cue 1
  • Local Connectors Analog Inputs 8
  • Analog Outputs 8
  • MY Slots 3
  • Dante I/O Primary / Secondary
  • Digital Out 1 (AES/EBU)
  • GPI 5 in / 5 out (CL V1.11 or later)
  • Word Clock I/O Yes
  • MIDI I/O In / Out
  • External Redundant PSU Optional PW800W
  • Meter Bridge Output meter built-in
  • Ethernet Yes
  • AC Inlet V-Lock Type
  • Scene Memory Number of Scenes 300
  • Recall Safe Yes
  • Focus Recall Yes
  • Fade Time Yes (0s ~ 60s)
  • Preview Yes (CL V1.51 or later)
  • Selective Load / Save Yes (CL V1.7 or later)
  • Tactile Control Keys Yes
