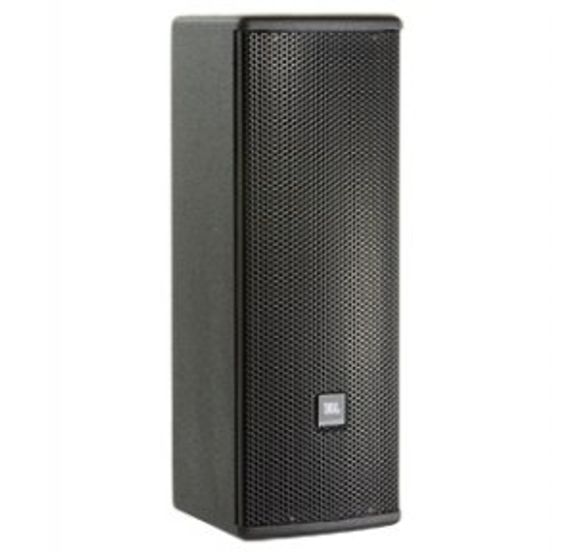

The AC28/26 from JBL is a 2-Way loudspeaker with dual 8" LF drivers ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 750W of program power and has a 1" HF driver with field rotatable 120 x 60° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC28/26 W has attachment points for the optional U-bracket or OmniMount.
1" HF driver with field rotatable 120 x 60° Coverage PT Waveguide.
Handles up to 750W program power
Specification:-
- Active or Passive Passive
- Frequency Response 47Hz-20KHz
- Power Capacity 375W Cont. Pink Noise
- 750W Program
- 1500W Peak
- Maximum Sound Pressure Level (SPL) Not specified by the manufacturer
- Nominal Sensitivity Not specified by the manufacturer
- Impedance 8 Ohms
- Crossover Not specified by the manufacturer
- Low Frequency Driver 8" x 2
- High Frequency Driver 1" Dome Tweeter
- Enclosure Material Multi-Ply Hardwood
- Input Connections Dual Neutrik NL4 connectors plus screw terminal
- Dimensions 26.8 x 9.4 x 10" (679.5 x 237.5 x 254mm)
- Weight 40.9 lbs (18.6kg)
