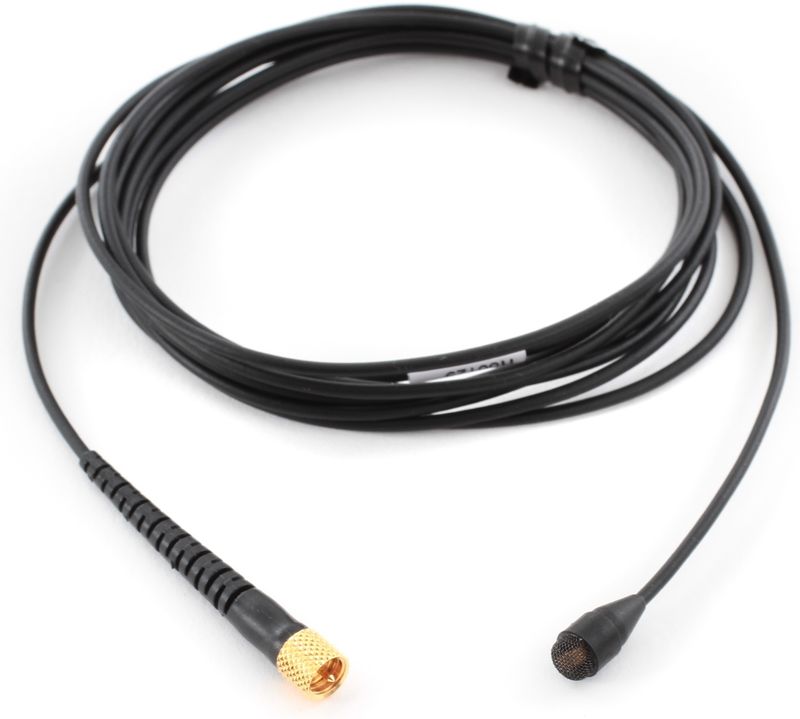

DPA 4060-BM HI-SENS

Description

The New d:screet™ 4060 Miniature Microphones are the versatile workhorses that adapts to your needs. With eminent sound quality, a large range of accessories, and adapters available for all pro wireless systems, the d:screet Miniature Mics are the obvious choice for any application requiring a big sound and a small footprint.

Specification:-

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB: Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz.
  • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 71 dB(A)
  • Total harmonic distortion (THD): < 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 100 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: 30 – 40 ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply: For wireless For wireless systems: Min. 5 V – max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.
  • Connector: MicroDot
  • Color: Black, beige, brown or white
  • Microphone weight: 7.5 g (0.26 oz) incl. cable and MicroDot connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
