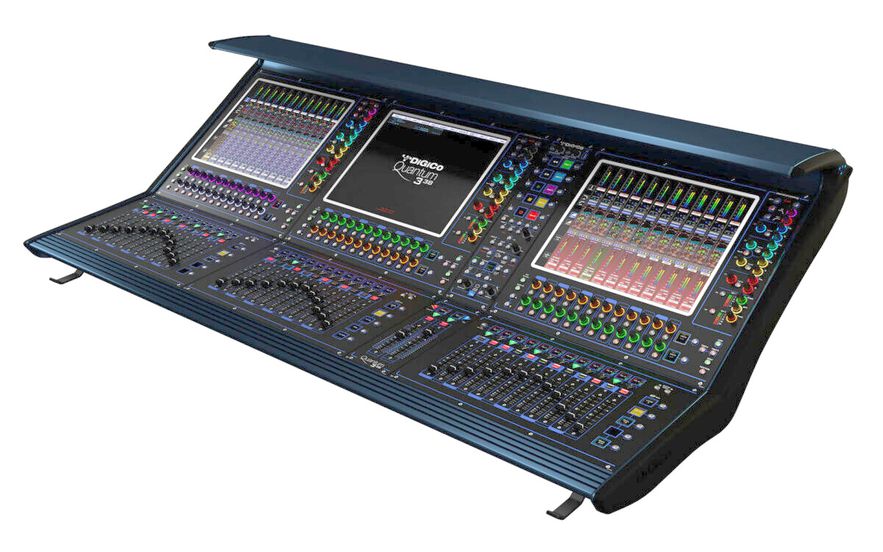

Representing a dramatic leap forward in power and connectivity within a remarkably compact format, Quantum 338 follows the Quantum 7 in defining the future of audio mixing.
Boasting a wealth of new design features and enhancements to create ultimate flexibility of use plus the speed of operation that only Quantum can deliver, Quantum 338 is based on seventh generation FPGAs with an entirely new system architecture. The console merges tried and tested workflows with immense processing muscle and bold innovation including a striking new dark mode.
Quantum 338 puts a trio of 17-inch, 1000 nit, high brightness multitouch screens at your disposal, with both the meter bridge and soft quick select buttons displayed on each screen for quick, intuitive operation. In addition, 70 individual TFT channel displays join the floating Quantum chassis with 38 100mm touch sensitive faders laid out in three blocks of 12 fader banks plus two dedicated user-assignable faders, each with high resolution metering.
Superior local audio connectivity and performance comes courtesy of new “Ultimate Stadius” 32-bit ADC and DAC conversion, which is built into the Quantum 338 as standard alongside six single or three redundant MADI connections, dual DMI slots and a built-in UB MADI USB recording interface.
Also included as standard are Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo.
- 128 Input Channels
- 64 Aux / Sub-Group Busses
- LR/LCR/LCRS/5.1 Master Buss
- 24 x 24 Full Processing Matrix
- 286 Dynamic Equalizers
- 48/96 kHz Sample Rate.
