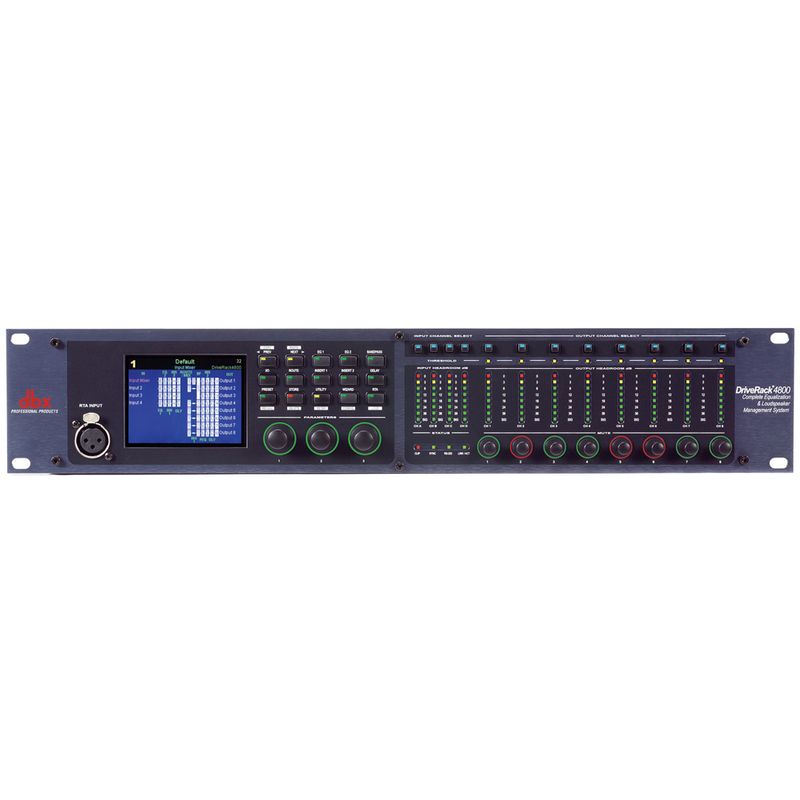

DBX Driverack 4800

Description

Designed to provide incredible flexibility, sonic excellence and intuitive control for performance applications, the DriveRack® 4800 is the new flagship of the hugely successful DriveRack family. From the powerful 96 kHz DSP engine and standard analog and digital I/O, to the QVGA display and multiple control surfaces, the 4800 provides all the processing, flexibility and control necessary for both installation and live use. The menu-based set-up procedure includes selectable DSP inserts on all inputs and outputs including classic dbx compression, limiting and advanced feedback suppression (AFS) among others.

Features:-

  • 48 and 96 kHz operation
  • Color QVGA Display
  • 4 analog and AES/EBU inputs
  • 8 analog and AES/EBU outputs
  • Optional Jensen® I/O Transformers
  • Full Bandpass Filter, Crossover and Routing Configurations with Bessel, Butterworth, and Linkwitz-Riley filters
  • 31-Band Graphic and 9-band Parametric EQ on every input
  • 6-band Parametric EQ on every output
  • Loudspeaker Cluster and driver Alignment Delays
  • Selectable DSP inserts on all inputs and outputs including Classic dbx Compression, Limiting and Advanced Feedback Suppression among others
  • Ethernet HiQnet™ networking contro
