- Recommended for audiences up to 500
- 24-speaker articulated line array delivers 180-degree horizontal sound coverage
- Produces the most consistent tonal balance with little volume drop-off over distance
- System's interconnecting pieces allow for efficient transport, easy setup and breakdown
- Four-channel ToneMatch® audio engine with studio class effects
- One B2 bass module included

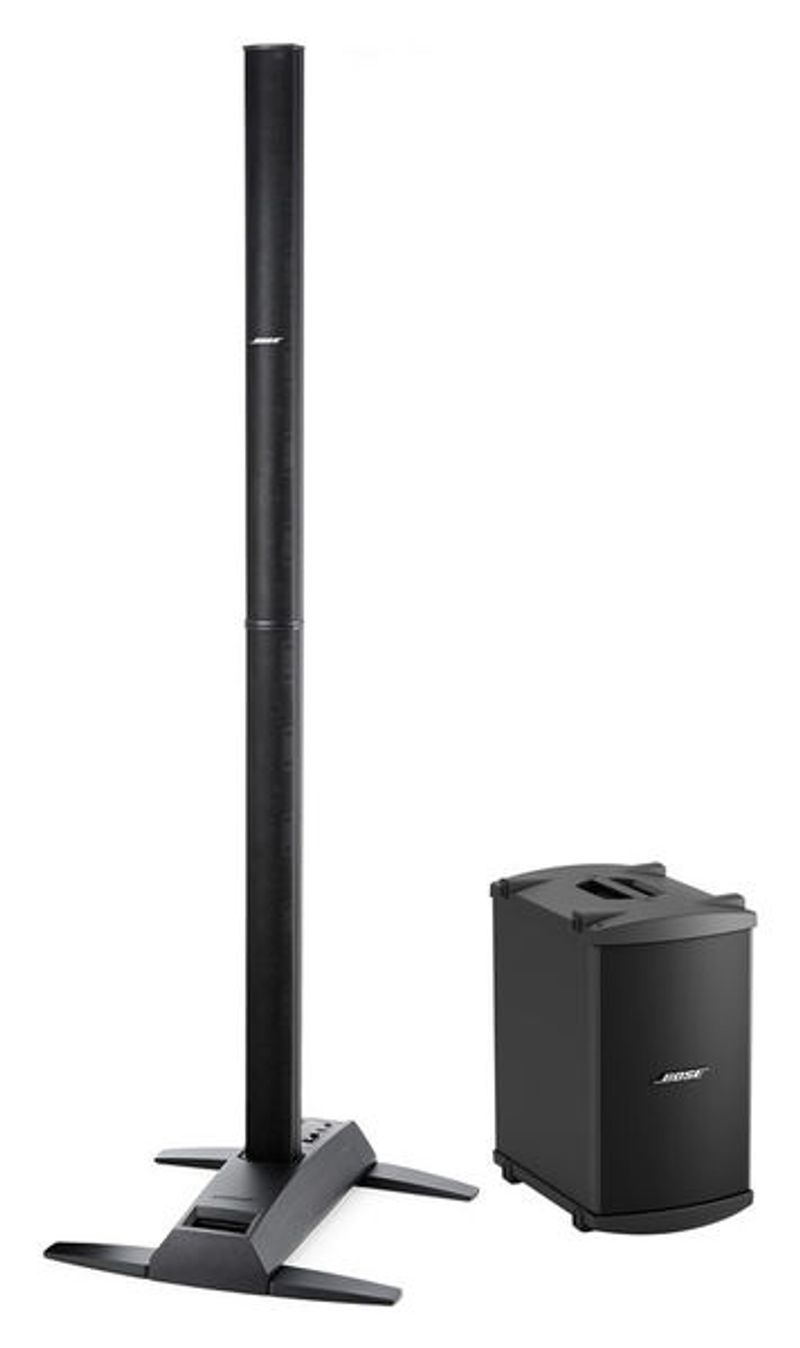

Boost your performance with the L1® Model II system, our most advanced portable amplification system for musicians, DJs and public speakers. The loudspeaker delivers 180 degrees of horizontal sound coverage and our smoothest tonal balance—across the stage and throughout the room. And the ToneMatch® audio engine provides a suite of studio-class effects and tone-shaping tools to give you just the sound you're looking for. Includes one B2 bass module for more flexibility and even greater power at the low end.
Our best portable sound system for musicians combines the Bose® L1® Model II system and T1 ToneMatch® audio engine. This professional concert sound system provides wide coverage, smooth tonal balance and a suite of studio-class effects and tone-shaping tools. And it's packed with proprietary Bose® technologies designed to improve your amplified sound.
Like the original, award-winning Bose® L1® loudspeaker system, this Model II sound system is an all-in-one innovation that replaces conventional monitors, mixers and PA speakers. The system's breakthrough loudspeaker produces wide, uniform sound coverage of nearly 180 degrees—onstage and throughout an audience of up to several hundred—with little dropoff in volume and tone.
The Model II system also features Articulated Array® speaker technology for better tonal balance. The loudspeaker's 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. Even people off to the sides of these stage speakers enjoy well-balanced, detailed sound.
- Spatial Dispersion™ and Articulated Array® speaker technologies in the loudspeaker produce wide, uniform sound coverage. The 24 small drivers are arranged using Articulated Array® speaker technology in a slim, vertical enclosure—creating nearly 180 degrees of horizontal coverage and consistent tonal balance.
- Integrated power amplifiers in the power stand provide clean, precise amplification for L1® Model II system with up to two B1 bass modules or one B2 bass module.
- ToneMatch® port on power stand for digital audio and power connection to ToneMatch® audio engine.
- Analogue input, trim control and signal/clip LED for line-level analogue input via 0.63 cm TRS phone cable. Can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems.
- Bass module out for amplified bass output signal to one or two B1 bass modules or one B2 bass module. L1® system automatically adjusts equalisation appropriately when bass modules are connected.
- Bass line out delivers post-DSP bass signal output. Accepts 0.63 cm TRS phone cable. Use to connect powered subwoofer, additional amplification system or Bose® PackLite® amplifier with up to two additional bass modules.
- Retractable legs provide stability for streamlined power stands and loudspeakers. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport
